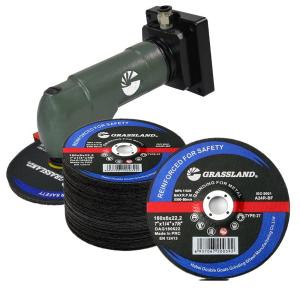

Resin Bond Metal 180 X 6 X 22.23mm Abrasive Grinding Wheel

Name: Resin Bond Metal 180 X 6 X 2223mm Abrasive Grinding Wheel
Brand: Grassland
Price: 0.7 USD

Brand Name : Grassland

Model Number : 180X6.0X22

Certification : ISO 9001,ISO14001 and MPA EN12413

Place of Origin : China

MOQ : 10000 PCS

Price : US$0.7-0.9

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 300 thousand PCS PER day

Delivery Time : 30-60 Days

Packaging Details : shrink wrap-inner box-carton-enhanced pallet

abrasive : Brown aluminium oxide

color : black

Hardness : R

Max working speed : 80 M/S

Grit size : 24#,30#,46#,

Iterm NO. : DAG1806022

Application : polishing and grinding metal welds

Bonding agent : resin bonded

arbor size : 7/8 in

Disc type : Depressed center type

Contact Now

Resin Bond Grinding Wheels For Metal 180 X 6 X 22.23mm

Specifications

Outer diameter: 180 mm
thickness: 6.5 mm
bore diameter: 22.23 mm
composition: aluminium oxide
quality: A24TBF
blade type: 27 - depressed
max. speed 8500 rpm
Excellent grinding performance and life
Fits all 180mm angle grinders
This Metal Grinding Wheel is suitable for general purpose grinding of ferrous metal welds and structural steels. It has also been designed to suit all 180mm grinders.

Grinding Wheels are 1/4 " thick, with 3 full diameter high tensile fiberglass reinforcements for maximum safety.

Grassland grinding discs are manufactured using A24T premium aluminum oxide grains with R-grade hardness for longer life during more aggressive grinding. These grains are resin bonded over high tensile strength fiberglass mesh and balanced to avoid vibration during use.
metal grinding wheels are manufactured to strict international standards and comply with MPA standard. For your own safety never buys discs that don't comply.

Application

These 7 inch grinder discs apply on ferrous metals, steel, stainless steel, rebar, iron pipe, bar stock and metal tubing.

Widely used for tank fabrication, power plant maintenance and repair, welding/metal fabrications shops, these are available to our clients in different specifications to suit their specific application requirement.

Cutting wheel information:
Product Name	Metal Grinding wheel	Abrasive	Brown Aluminum oxide and silicon carbide
Hardness	R Grade	Net Standard	Reinforced fiberglass
Max working speed	80 m/s	OEM Service	Acceptable
R.P.M	8500	Package	Kraft Carton and Pallet
Grit size	24#,30#,	HS Code	68042210
Certificate	MPA EN12413,ISO9001	Loading Port	Tianjin or else

T27 Grinding wheel for metal

Description of goods	Item No	Specification	Unit	PCS/CTN	N.W./G.W.(KGS)	CARTON SIZE(CM)
Depressed grinding disc for metal 80m/s	DAG1804022	T27-180X4.0X22.2MM	PC	60	14.5/15.5	37.51917.7
	DAG1806022	T27-180X6.0X22.2MM	PC	60	22/23	37.52519
	DAG1807022	T27-180X7.0X22.2MM	PC	30	11/12	37.51913.5
	DAG1808022	T27-180X8.0X22.2MM	PC	60	28/29	37.51929.7
	DAG2304022	T27-230X4.0X22.2MM	PC	30	10.5/11.5	242417.7
	DAG2306022	T27-230X6.0X22.2MM	PC	30	18/19	242422.7
	DAG2307022	T27-230X7.0X22.2MM	PC	30	19/20	242426.7
	DAG2308022	T27-230X8.0X22.2MM	PC	30	21/22	2524.529.7

T41-flat cutting and grinding discs

Description of goods	Item No	Specification	Unit	PCS/CTN	N.W./G.W.(KGS)	CARTON SIZE(CM)
Flat cutting disc for metal 80 m/s	FAC3003225	T41-300X3.2X25.4MM	PC	25	13/14	30309.5
	FAC3004025	T41-300X4.0X25.4MM	PC	25	14/15	303011
	FAC3503225	T41-350X3.2X25.4MM	PC	25	17/18	35.535.59.5
	FAC3504025	T41-350X4.0X25.4MM	PC	20	17/18	35.535.59.5
	FAC4003225	T41-400X3.2X25.4MM	PC	25	22/23	40409.5
	FAC4004025	T41-400X4.0X25.4MM	PC	20	22/23	404011
