5 Inch Metal Grinding Discs

  • 1
  • 2

Brand Name : Grassland

Model Number : 125X3.0X22

Certification : MPA and ISO 9001,ISO1400,OHSAS18001

Place of Origin : China

MOQ : 10000 PCS

Price : US$0.19-0.25

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 300 thousand PCS PER day

Delivery Time : 30-60 Days

Packaging Details : shrink wrap-inner box-carton-enhanced pallet

abrasive : aluminium oxide

color : black

Hardness : R

Max working speed : 80 M/S

Grit size : 24#,30#,46#,60#

Iterm NO. : DAC1003016

Application : Ferrous metal and steel cutting

Bonding agent : resin bonded

arbor size : 7/8 in

Disc type : depressed center type

Contact Now

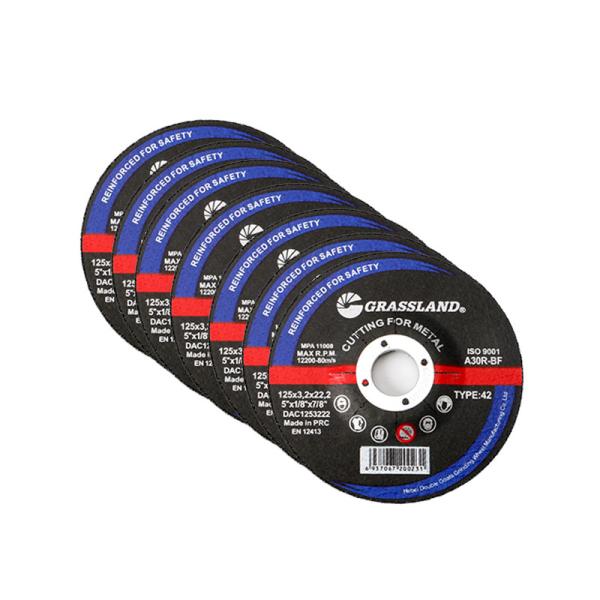

Grassland 5 Inch Metal Grinding Angle Grinder Disk Disc Wheel

Product details
• Brand Name: Grassland

- Steel cutting disc.

- Outer diameter 115mm.

- Inner bore diameter 22.23mm.

- Thickness 3.2mm.

Features and Benefits:
•Excellent cutting performance and life
• Grain Designation A30SBF
• Additional Conformity MPA Approved

- Maximum circumferential speed: 80 m/s (depending on rpm and disc diameter)

Fast cutting plate using alumina, white corundum silicon carbide and other abrasive.Our High Quality Alumina Cutting Discs get the job done effectively and efficiently. Use Grassland High Quality Alumina reinforced bonded resin Cutting Discs for cutting cast-iron, sheet metal, stainless and mild steel. Cut clean. Cut straight. Cut Safely.

Generally speaking, Type 1 wheels offer more versatility, especially when cutting profiles, corners or anything that requires the operator to cut up and over two different planes of cutting surface. Type 27 wheels, on the other hand, are ideal for getting into tight corners or overhangs. The depressed centre of a Type 27 wheel provides the extra clearance sometimes needed to get the job done.

Application:They are commonly used in building, shipbuilding, metal, foundry, engineering, chemical and other industries as well as in smaller workshops. They can be used on portable electrically or pneumatically driven portable horizontal/vertical spindle grinders.

Cutting wheel information:
Product Name 5inch cutting wheel Abrasive Aluminum oxide
Hardness R Grade Net Standard Reinforced fiberglass
Max working speed

80 m/s

 OEM Service Acceptable
R.P.M 15300 Package

Kraft Carton and Pallet
Grit size 24#,30#,46#,60# HS Code 68042210

Certificate

MPA EN12413,ISO9001

 Loading Port Tianjin or else

Other abrasive cutting and grinding wheel you may be interested,

Description of goods Item No Specification Unit PCS/CTN N.W./G.W.(KGS) CARTON SIZE(CM)
Flat cutting disc for inox/Alu 80m/s FSC0751009 T41-75X1.0X9.5MM PC 800 9/10 34*17*17
FSC0751695 T41-75X1.6X9.5MM PC 800 14/15 34*20*17
FSC1001016 T41-100X1.0X16MM PC 400 8.5/9.5 22*22*15.7
FSC1002016 T41-100X2.0X16MM PC 400 15/16 29.7*22*22
FSC1151022 T41-115X1.0X22.2MM PC 400 11/12 24.5*24.5*15.7
FSC1151622 T41-115X1.6X22.2MM PC 400 14/15 24.5*24.5*19.2
FSC1152022 T41-115X2.0X22.2MM PC 200 9.5/10.5 24.5*24.5*13.2
FSC1251022 T41-125X1.0X22.2MM PC 400 13/14 26.5*25.6*15.7
FSC1251622 T41-125X1.6X22.2MM PC 400 17/18 26.5*25.6*19.2
FSC1252022 T41-125X2.0X22.2MM PC 200 10.5/11.5 26.5*26.5*13.2
FSC1501622 T41-150X1.6X22.2MM PC 200 12/13 32*32*11.7
FSC1502022 T41-150X2.0X22.2MM PC 200 16.5/17.5 32*32*13.2
FSC1801622 T41-180X1.6X22.2MM PC 200 20/21 37.5*19*22.7
FSC1802022 T41-180X2.0X22.2MM PC 100 10.5/11 37.5*19*13.2
FSC2301622 T41-230X1.6X22.2MM PC 50 8/9 24*24*11.7
FSC2302022 T41-230X2.0X22.2MM PC 100 18.5/19.5 24*24*25.7

Description of goods Item No Specification Unit PCS/CTN N.W./G.W.(KGS) CARTON SIZE(CM)
Flat cutting disc for inox/Alu 80m/s FSC0751009 T41-75X1.0X9.5MM PC 800 9/10 34*17*17
FSC0751695 T41-75X1.6X9.5MM PC 800 14/15 34*20*17
FSC1001016 T41-100X1.0X16MM PC 400 8.5/9.5 22*22*15.7
FSC1002016 T41-100X2.0X16MM PC 400 15/16 29.7*22*22
FSC1151022 T41-115X1.0X22.2MM PC 400 11/12 24.5*24.5*15.7
FSC1151622 T41-115X1.6X22.2MM PC 400 14/15 24.5*24.5*19.2
FSC1152022 T41-115X2.0X22.2MM PC 200 9.5/10.5 24.5*24.5*13.2
FSC1251022 T41-125X1.0X22.2MM PC 400 13/14 26.5*25.6*15.7
FSC1251622 T41-125X1.6X22.2MM PC 400 17/18 26.5*25.6*19.2
FSC1252022 TT41-125X2.0X22.2MM PC 200 10.5/11.5 26.5*26.5*13.2
FSC1501622 T41-150X1.6X22.2MM PC 200 12/13 32*32*11.7
FSC1502022 T41-150X2.0X22.2MM PC 200 16.5/17.5 32*32*13.2
FSC1801622 T41-180X1.6X22.2MM PC 200 20/21 37.5*19*22.7
FSC1802022 T41-180X2.0X22.2MM PC 100 10.5/11 37.5*19*13.2
FSC2301622 T41-230X1.6X22.2MM PC 50 8/9 24*24*11.7
FSC2302022 T41-230X2.0X22.2MM PC 100 18.5/19.5 24*24*25.7
