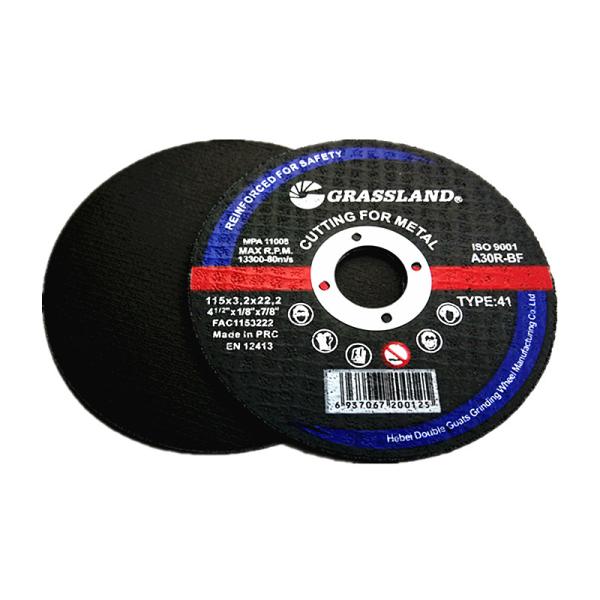

Angle Grinder Metal Cutting Abrasive Depressed Centre Grinding Wheel Disc

Brand Name : Grassland

Model Number : 230X3.0X22

Certification : ISO9001,ISO14001 and MPA EN12413

Place of Origin : China

MOQ : 10000

Price : US$0.6-0.7per piece

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 300 thousand PCS per day

Delivery Time : 30-60 Days

Packaging Details : shrink wrap-inner box-carton-enhanced pallet

abrasive : aluminium oxide and corundum

color : Black

Hardness : R

Max working speed : 80 M/S

Grit size : 46#,60#

Iterm NO. : FAC2303022

Application : Ferrous metal and all steel cutting

Bonding Agent : Resin

Arbor Size : 7/8 in

Disc type : Flat type

Contact Now

Depressed Centre 9" Inch 230*3.0*22.2 cutting disc Angle Grinder Metal Cutting Disc

Key Features

  • HSS cutting design

  • Fast cutting

  • Suitable for stainless steel and HSS

  • Ideal for cutting all ferrous metals

  • No burr formation or colour change

  • Low vibration

  • Extra long-life

Technical Specification
Diameter : 230mm
Bore : 22.23mm
Thickness : 3mm
Maximum circumferential speed : 80 m/s
RPM : 6650 min
Complies with EN 12413

Grassland discs have been developed for precision cutting sheet metal and with strengthened core stability for reduced vibration. This cutting discs of Grassland is ideally suited for on-site and small unit jobs like cutting pipe, cutting sheet metal and notching. Long lasting durable wheel is used on grinding alloys, steels and ferrous metals takes less down time for wheel changes while providing ultimate results on stainless steel. Wheel features resin bond and enforced into metal plate dimensioning, foundry gate/riser removal to provide consistent performance.

Features:
Higher cutting speed, Low material loss and Low noise.
Ultra-thin cutting piece wear-resistant, no broken edge and low dissipation for processed materials.
Extremely fast and precise cutting with minimal effort required.

Applications

Cutting metals in the form of rebar, channels, angle profiles, pipes and sheet

Car bodywork, tank construction, steel cable, thin-walled profile sections and pipes made from stainless steel, non-ferrous metals and composite materials.


Cutting wheel information:
Product Name 9 metal Cutting discs Abrasive premium Aluminum oxide
Hardness R Grade Net Standard Reinforced fiberglass
Max working speed

80 m/s

OEM Service Acceptable
R.P.M 6650 Package

Kraft Carton and Pallet

Grit size 46#,60# HS Code 68042210

Certificate

MPA EN12413,ISO9001

Loading Port Tianjin or else

Description of goods Item No Specification Unit PCS/CTN N.W./G.W.(KGS) CARTON SIZE(CM)
Flat cutting disc for metal 80m/s FAC0751095 T41-75X1.0X9.5MM PC 800 9/10 34*17*17
FAC0751695 T41-75X1.6X9.5MM PC 800 14/15 34*20*17
FAC1001016 T41-100X1.0X16MM PC 400 8.5/9.5 22*22*15.7
FAC1002016 T42-100X2.0X16MM PC 400 15/16 27.7*22*22
FAC1151022 T41-115X1.0X22.2MM PC 400 11/12 24.5*24.5*15.7
FAC1151622 T41-115X1.6X22.2MM PC 400 14/15 24.5*24.5*19.2
FAC1152022 T41-115X2.0X22.2MM PC 200 9.5/10.5 24.5*24.5*13.2
FAC1251022 T41-125X1.0X22.2MM PC 400 13/14 26.5*25.6*15.7
FAC1251622 T41-125X1.6X22.2MM PC 400 17/18 26.5*25.6*19.2
FAC1252022 T41-125X2.0X22.2MM PC 200 10.5/11.5 26.5*26.5*13.2
FAC1501622 T41-150X1.6X22.2MM PC 200 12/13 32*32*11.7
FAC1502022 T41-150X2.0X22.2MM PC 200 16.5/17.5 32*32*13.2
FAC1801622 T41-180X1.6X22.2MM PC 200 20/21 37.5*19*22.7
FAC1802022 T41-180X2.0X22.2MM PC 100 10.5/11 37.5*19*13.2
FAC2301622 T41-230X1.6X22.2MM PC 50 8/9 24*24*11.7
FAC2302022 T41-230X2.0X22.2MM PC 100 18.5/19.5 24*24*25.7

Other you may interested in specifications details as below,

Description of goods Item No Specification Unit PCS/CTN N.W./G.W.(KGS) CARTON SIZE(CM)
Flat cutting disc for inox/Alu 80m/s FSC0751009 T41-75X1.0X9.5MM PC 800 9/10 34*17*17
FSC0751695 T41-75X1.6X9.5MM PC 800 14/15 34*20*17
FSC1001016 T41-100X1.0X16MM PC 400 8.5/9.5 22*22*15.7
FSC1002016 T41-100X2.0X16MM PC 400 15/16 29.7*22*22
FSC1151022 T41-115X1.0X22.2MM PC 400 11/12 24.5*24.5*15.7
FSC1151622 T41-115X1.6X22.2MM PC 400 14/15 24.5*24.5*19.2
FSC1152022 T41-115X2.0X22.2MM PC 200 9.5/10.5 24.5*24.5*13.2
FSC1251022 T41-125X1.0X22.2MM PC 400 13/14 26.5*25.6*15.7
FSC1251622 T41-125X1.6X22.2MM PC 400 17/18 26.5*25.6*19.2
FSC1252022 T41-125X2.0X22.2MM PC 200 10.5/11.5 26.5*26.5*13.2
